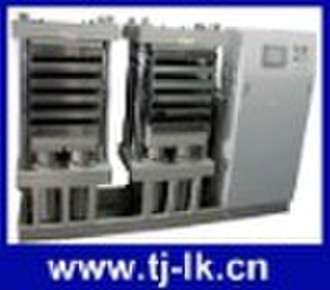

YCY-215D2 card laminator

Laminator YCY-215D2 420×520 This model of laminator is designed for meeting the lamination process demands of various types of RFID cards including HRF, LRF card and electronic label as well as various Inlays. It features hydraulic pressing, electric heating, water-cooling and double-tower structure; It is controlled by PLC and the whole machine structure is well compact and rigid. The pressure releasing spring is applied between the top template and upper beam to realize slight contact; The temperature for heating and the pressures for cool and heat are controlled through the full closed loop. The temperature is evenly distributed and the control of pressure is accurate. The control precision of temperature is as ±1ºC and the control precision of pressures are as ±0.3MPa; In order to meet the lamination demands of high-end cards, the process of hot template moving up can be set into 1 to 5 sections as per specific technological requirements and the time for staying at each section can be flexibly set. Hot lamination process has 8 grades and cool pressure has 4 grades. The interface of man-machine dialogue adopts a touch screen, which is simple and convenient for operation. This machine is known as the first choice among laminators for RFID cards lamination. Technical parameters l Material applicable: PVC and other plastic material l Lamination layout: 4×8, 3×8 or 5×5 l Plate number : Double tower/6×2 l Plate size: 420×520 l Daylight: 50mm l material layers in daylight(Max): 15 layers l Work pressure: 0.8 15Mpa adjustable l Pressure precision : ±0.3Mpa l Heat temperature: ≤170°C or ≤250°C l Temp. precision: ±1.0°C l Cylinder travel: 280mm l Hydraulic oil tank volume: 180 L l Power supply: AC380V 50/60Hz 3 phases 5 wires l Power: 22.0KW l Productivity: 6000 card/h l Dimension: 2.3×0.9×1.8m l Weight: Appr.3500kg
