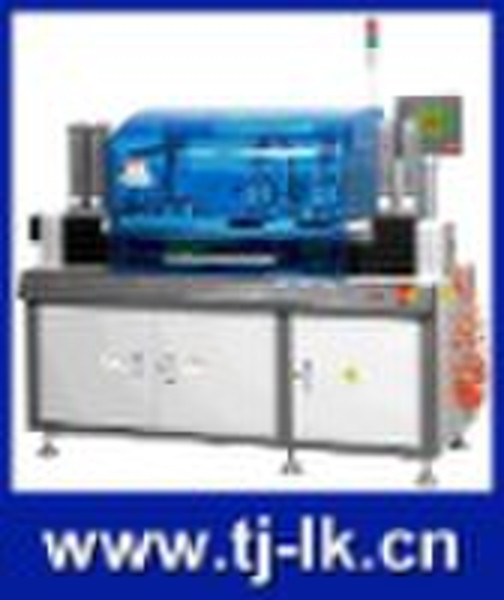

YC-ICM Card milling machine

Card milling machine Function: It is used for milling cavity matching to different chips on standard cards. Features: Integrated milling with clean system and depth detection functions. Specialized fixture design for card centering system, protecting the milling depth from the influences of the card thickness and dimension. Include four standard module milling programs fitting to different requirements with parameters modification conveniently. X and Y the two separated milling stations can mill different profiles at the same time, or individually. It settles the difficult problem of adjusting the center place on two stations while milling. Z-Axis moving is realized through guide and ball screw driven by high precision servomotor, to provide the accurate milling depth. Special tool changing program make tool changing is fast and convenient. Personalized software design with easy operation Cards are transferred through belt driven by servomotor, which is more safety and stability. Depth detection device ensures the eligible rate during milling by rejecting faulty cards. Special feeding design avoids unloading double cards caused by static electricity. Tech. Specification Dimension: H1600W820L1800 WeightAbout 800kgs ElectricAC380V three phases 50/60Hz 20A Power: 2.5 KW Compress Air6 kgs /c Air consumption: 100L/min Control MethodServo system + PLC control Servo PrecisionX,Y=0.0125 Tolerance: 0.01 Operator1 person. Output40004500 pcs/h.
